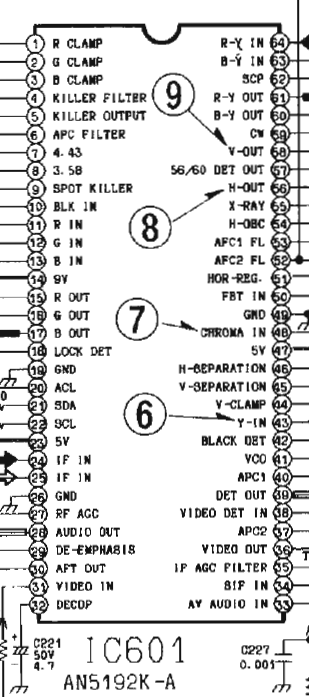

ic chroma/jungle AN5192K-A

Ic ini biasa dipakai utk tv crt panasonic


pin1 =R CLAMP(7.2v)

pin2 =G CLAMP(7.2v)

pin3 =B CLAMP(7.2v)

pin4 =KILLER FILTER(3.1v)

pin5 =KILLER OUTPUT(4.9v)

pin6 =APC FILTER(2.5v)

pin7 =4.43(2.6v)

pin8 =3.58(2.8v)

pin9 =SPOT KILLER(8.9v)

pin10 =BLK IN(0v)

pin11 =R IN(0v)

pin12 =G IN(0v)

pin13 =B IN(0v)

pin14 =VCC [9V]

pin15 =R OUT(3.3v)

pin16 =G OUT(3.4v)

pin17 =B OUT(3.5v)

pin18 =LOCK DET(6.2v)

pin19 =GND(0v)

pin20 =ACL(3.2v)

pin21 =SDA(4.4v)

pin22 =SCL(4.3v)

pin23 =VCC [5V]

pin24 =IF IN(2.7v)

pin25 =IF IN(2.7v)

pin26 =GND(0v)

pin27 =RF AGC(4.3v)

pin28 =AUDIO OUT(4.6v)

pin29 =DE-EMPHASIS(4.2v)

pin30 =AFT OUT(4.6v)

pin31 =VIDEO IN(2v)

pin32 =DECOP(4.4v)

pin33 =AV AUDIO IN(4.2v)

pin34 =SIF IN(2v)

pin35 =IF AGC(2.7v)

pin36 =VIDEO OUT(0.3v)

pin37 =APC2(3.7v)

pin38 =VIDEO DET IN(2.3v)

pin39 =DET OUT(3.1v)

pin40 =APC1(2.5v)

pin41 =VCO(3.9v)

pin42 =BLACK DET(4.1v)

pin43 =Y-IN(3.9v)

pin44 =V-CLAMP(2.8v)

pin45 =V-SEPARATION(2.1v)

pin46 =H-SEPARATION(2.1v)

pin47 =VCC [5V]

pin48 =CHROMA IN(4.4v)

pin49 =GND(0v)

pin50 =FBT IN(0.4v)

pin51 =H VCC [6.5V]

pin52 =AFC2 FILT(2.4v)

pin53 =AFC1 FILT(4.5v)

pin54 =H OSC(2.3v)

pin55 =X-RAY(0v)

pin56 =H OUT(1.4v)

pin57 =50/60 DET OUT(0v)

pin58 =V OUT(4v)

pin59 =CW(1.2v)

pin60 =B-Y OUT(2.2v)

pin61 =R-Y OUT(2.2v)

pin62 =SCP(0.8v)

pin63 =B-Y IN(4.6v)

pin64 =R-Y IN(4.6v)
